Plot coverage distribution at a given rank

This function reads a Zonation feature curves file and plots the distribution of feature coverage values at a specified priority rank. The output is a ggplot object, which can be further customized by the user. Optionally, the plot can be saved to disk as a high-quality figure.

Usage

coverage_distribution(
  dir,
  output_folder_name = "output",
  target_rank,
  save_path = NULL,
  dpi = 300,
  width = 8,
  height = 6
)

Arguments

dir

Character. Path to the directory containing the Zonation output folder.

output_folder_name

Character. Name of the Zonation output folder inside dir (default: "output").

target_rank

Numeric. The rank value at which coverage distributions should be extracted and plotted.

save_path

Character. Optional file path to save the plot. The file format is inferred from the specified extension (e.g. ".png", ".pdf", ".tiff").

dpi

Numeric. Resolution (dots per inch) for saved figures. Default is 300.

width

Numeric. Width of the saved figure in inches. Default is 8.

height

Numeric. Height of the saved figure in inches. Default is 6.

Value

A ggplot object showing the distribution of feature coverage values at the specified priority rank.

See also

Other postprocessing: cost_summary(), feature_curves(), feature_representation(), priority_map(), rank_similarity(), summary_curves()

Examples

if (FALSE) { # \dontrun{

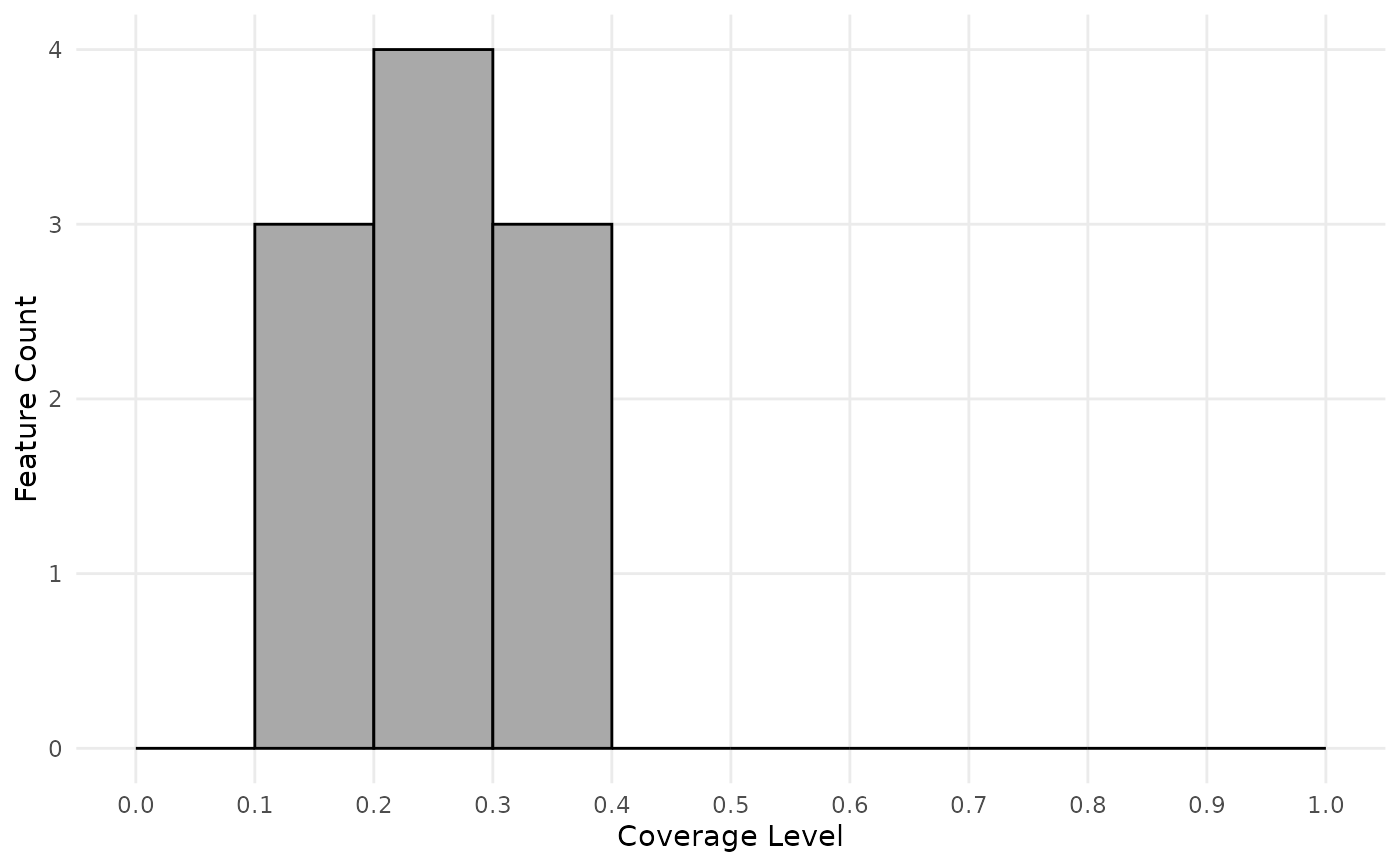

# Plot coverage histogram at rank 0.9
p <- coverage_distribution("01_baseline", target_rank = 0.9)
p + ggplot2::theme_classic()

# Save as PNG
coverage_distribution("01_baseline", target_rank = 0.9,
                      save_path = "coverage_hist.png")

# Save as PDF
coverage_distribution("01_baseline", target_rank = 0.9,
                      save_path = "coverage_hist.pdf")
} # }
